The working principle of vibrating screen
The vibrating screen is made of a vertical vibration motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the vibration motor, which converts the rotary motion of the vibration motor into three-dimensional motion of horizontal, vertical and inclined, and then transmits this motion to the Sieve surface. Adjusting the phase angle of the upper and lower ends can change the movement track of the material on the screen surface

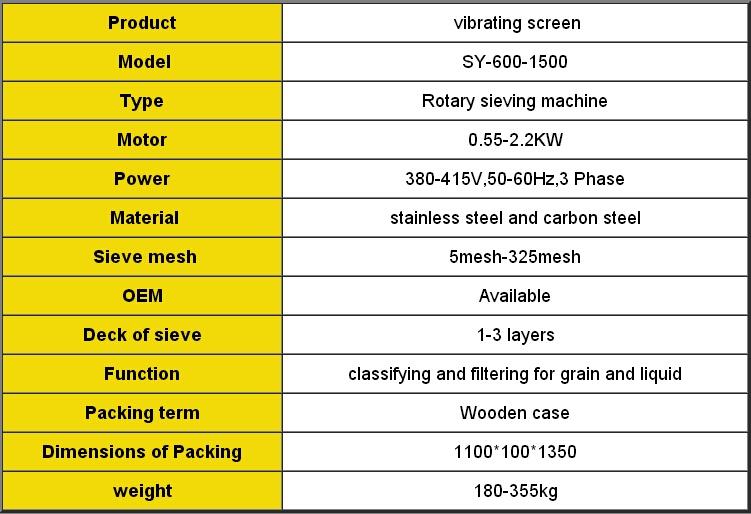

Rotary vibrating screen structure diagram model specification parameters
The main types of rotary vibrating screen are 600, 800, 1000, 1200, 1500,2000MM, etc. According to different screening materials and industries, the materials are also different, mainly 304 stainless steel, carbon steel, etc.
Application range: food industry, pharmaceutical industry, chemical industry, metal powder and other industries.
