1.Product Description

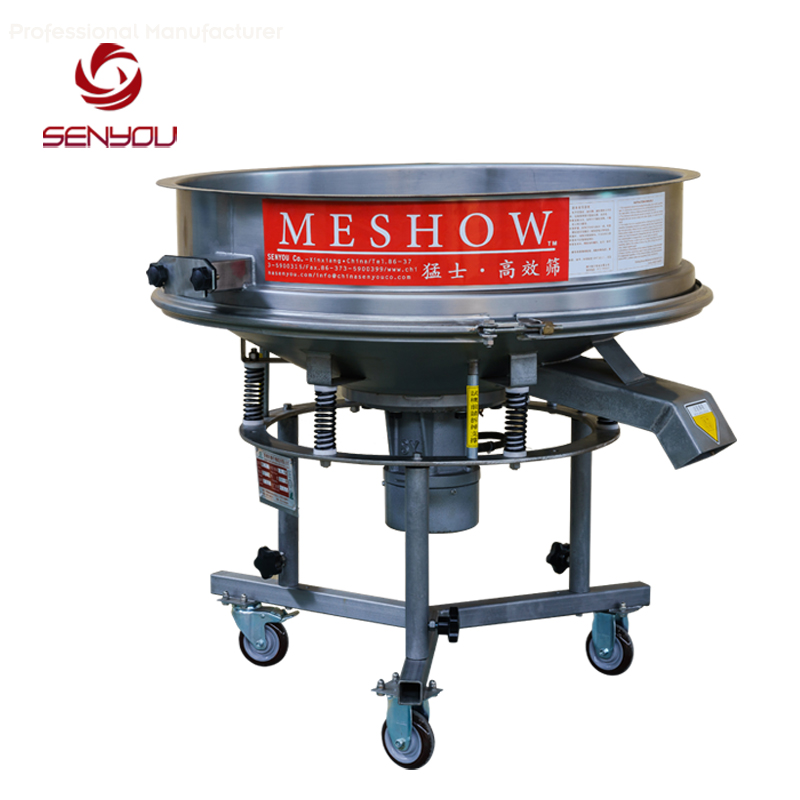

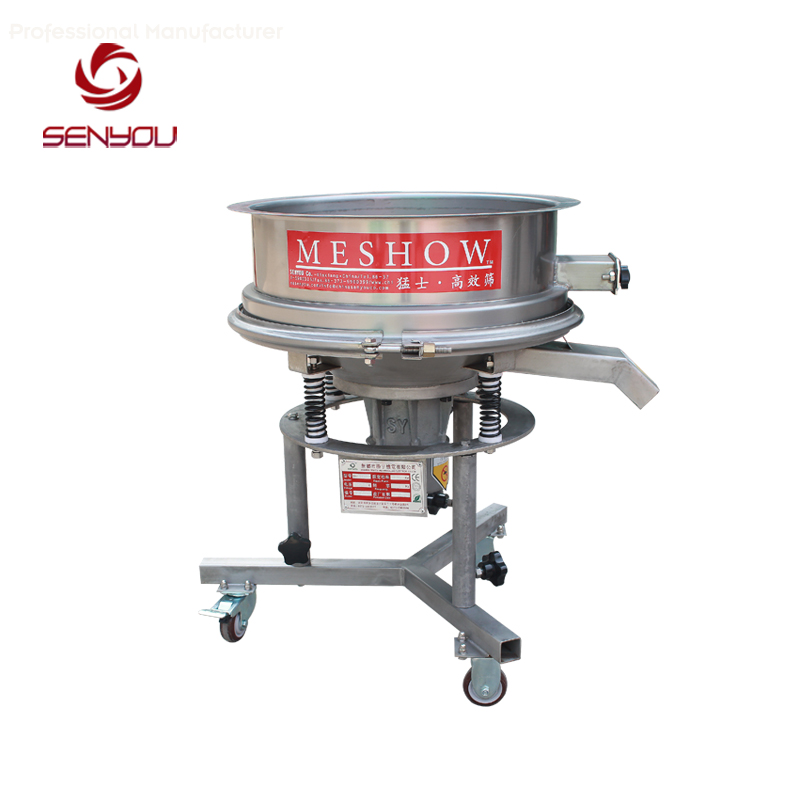

Senyou vibrating filter sieve for ceramic glazeis self-developed products with featuresof high efficiency,small amplitude and low noise.Applicable to the industries includingceramics glazes,mining,coating,food,chemical etc for liquid filtering and grading.With the stable quality,Senyou products have got highly recognized among customers all over the world.Each machine is adapted a movable rack that makes machine moved freely And the height could be adjusted.It has long use time and simple installation and Operation.
2.Technical parameter
| No. | Model | MSG-600 | MSG-800 | MSG-1000 | MSG-1200 |
| 1 | Normal Power | 380V/50HZ | |||
| 2 | Motor Power | 0.55KW | 0.55KW | 0.75KW | 1.1KW |
| 3 | Vibration Mode | Three Dimensional Vibration | |||
| 4 | RPM | 2900r/min | |||
| 5 | Largest Vibration Force | 5000N | 8000N | 10000N | 15000N |
| 6 | Amplitude | 2-4mm | |||
| 7 | Effective Screen Area | 0.221m² | 0.453m² | 0.785m² | 1.002m² |
| 8 | Decibels | ≦75db | |||
| 9 | Dimensions | Φ600×860mm | Φ800×860mm | Φ970×890mm |
Φ1170×890mm |
| 10 | Body Material | SUS304 Stainless Steel | |||
| 11 | Motor Material | Cast Aluminum | |||
| 12 | Surface Treatment | The Base Pickling,Passivation,Plastic-sprayed. | |||
3 Application
Senyou vibrating filter sieve for ceramic glaze it is most typically used in the following industries:
- Ceramic material,glaze,kaolin clay
- Food: sifting liquid materials and removing solids
- Paint
- Recycling & Laundry, removing solids from waste water
- Processing
- Minerals & chemical
- Wet or dry … heavy or light … coarse or fine … hot or cold.
4.Package&Shipping:
Senyou vibrating filter sieve for ceramic glaze : Export fumigation-free wooden case.
