1.Product Description
The glaze vibrating separator specializes in the screening of glazes and other viscous fluid materials. Featuring a high-frequency vibration motor and a flexible support frame, this equipment allows for convenient height adjustment to fit different workplace environments and production line heights.
2.Technical parameter

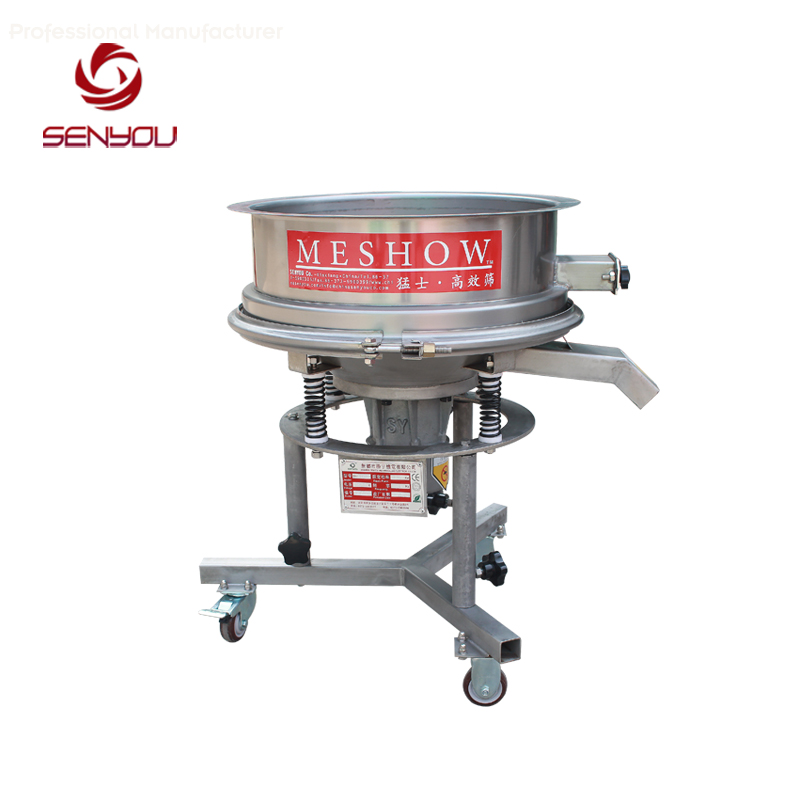

Senyou standard glaze vibrating separator with best price
| No. | Model | MSG-600 | MSG-800 | MSG-1000 | MSG-1200 |
| 1 | Normal Power | 380V/50HZ;415/50HZ | |||
| 2 | Motor Power | 0.55KW | 0.55KW | 0.75KW | 1.1KW |
| 3 | Vibration Mode | Three Dimensional Vibration | |||
| 4 | RPM | 2900r/min | |||
| 5 | Largest Vibration Force | 5000N | 8000N | 10000N | 15000N |
| 6 | Amplitude | 2-4mm | |||
| 7 | Effective Screen Area | 0.221m² | 0.453m² | 0.785m² | 1.002m² |
| 8 | Decibels | ≦75db | |||
| 9 | Dimensions | Φ600×860mm | Φ800×860mm | Φ970×890mm | Φ1170×890mm |
| 10 | Body Material | SUS304 Stainless Steel | |||
| 11 | Motor Material | Cast Aluminum | |||
| 12 | Surface Treatment | The Base Pickling,Passivation,Plastic-sprayed. | |||
3.Features:
(1).No rotating components, eliminating the need for lubricating oil refills.
(2).Boasts a simplified structure, facilitating easy maintenance, delivering long-lasting durability, and ensuring a low malfunction rate.
(3).The vibrator operates on the resonance principle and works in a dual-body critical resonance state, which results in low required driving power, no large starting current during startup, and reduced noise levels.
(4).Once the vibrator is activated, the amplitude reaches a stable operating value instantly. Upon shutdown, the amplitude vanishes immediately. Direct startup and shutdown at rated voltage, current, and amplitude are permissible.
(5).The exciting vibration and amplitude of the screen body are adjustable. The particle size of undersize products can be controlled by modifying the screen body’s exciting force (i.e., adjusting the exciting vibration).
4.Working principle
The glaze vibrating separator operates on a distinct principle compared to conventional screening equipment. This high-speed glaze vibrating filter relies on a high-frequency vibration motor, whose rapid vibrations disrupt the surface tension of the material within the slurry. This action causes the material to vibrate intensely across the screen surface, boosting the contact frequency between the target material and the screen mesh to deliver superior screening and separation performance.
5.Package&Shipping
Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable the production period is about 5-7working days after received your payment.
