1.Product Description:
As a widely adopted filter screening solution, Senyou new design slurry filtering equipment for ceramic is engineered to handle a range of substances such as ceramic slurry, environmental protection materials, sewage and oil paint. It excels at removing residual particulate impurities from the slurry, which in turn significantly enhances the quality standards of ceramic products.
2.Specifications:

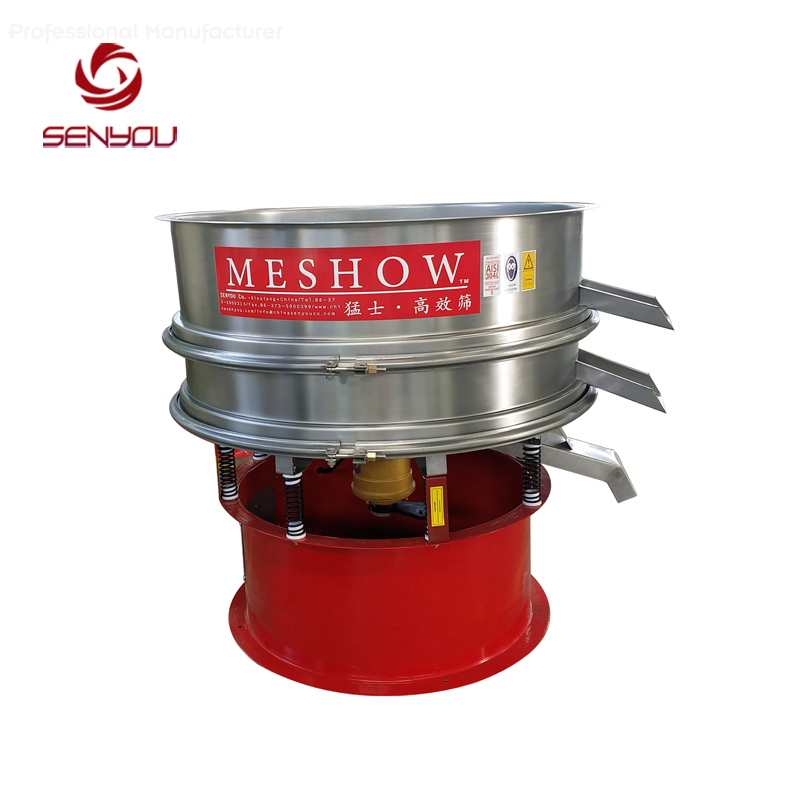

Senyou new design slurry filtering equipment for ceramic
| Model | MSN-1000 | MSN-1200 |
| Vibration Mode | Three dimensional vibration | |
| Motor Power | 0.75KW | 1.1KW |
| Largest Vibration Force | 10000N | 15000N |
| Amplitude | 2-4mm | |
| Normal Power | 380V/50Hz;415V/50Hz | |
| Screen Area | 0.785㎡ | 1.002㎡ |
| Decibels | ≤75db | |
| Dimension | 1240mm*1240mm*920mm | 1370mm*1370mm*920mm |
3.Features:
(1).Single-layer mesh construction enables the fine mesh to boast a 3–5 times longer service life.
(2).Removed the support mesh entirely, resulting in a 30% boost in processing capacity.
(3).Cuts down production costs significantly while featuring far fewer vulnerable components.
(4).Screen replacement takes only 3–5 minutes, making operation simpler and more efficient.
4.Working principle
Senyou new design slurry filtering equipment for ceramic is equipped with a dedicated excitation source, fitted with eccentric weights at both its upper and lower ends. These weights transform the equipment’s rotational motion into a 3D movement that combines horizontal, vertical, and inclined directions, which is then transferred to the screen surface. By adjusting the phase angle of the upper and lower ends, you can flexibly alter the movement path of materials across the screen.
5.Package&Shipping
Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable the production period is about 5-7 working days after received your payment.
