1.Product Introduction

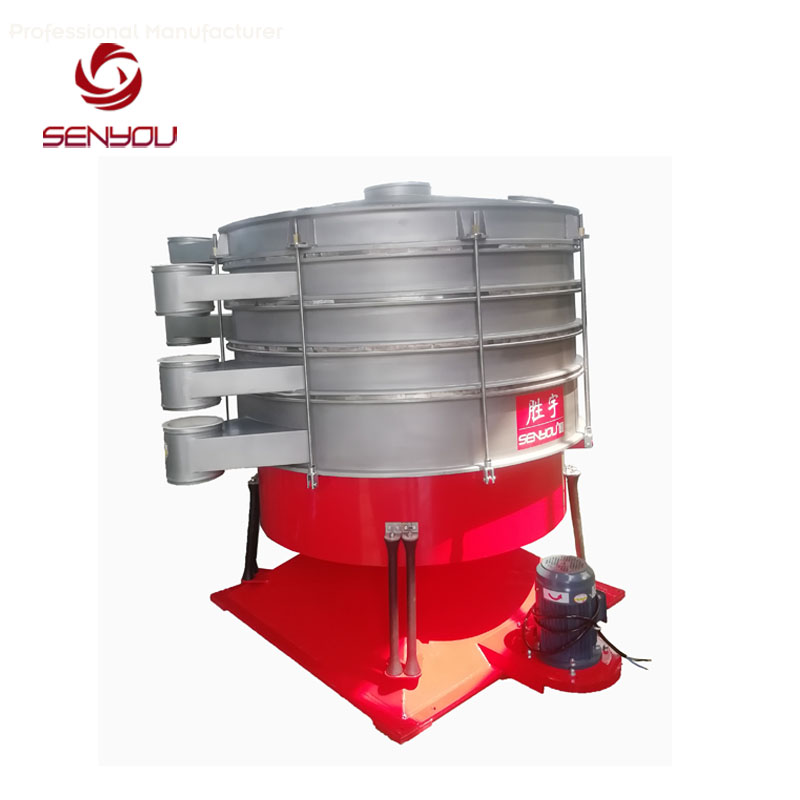

As a high-frequency screening apparatus, Senyou hot sell tumbler screen vibrating sieve for spices powder is designed to fulfill the requirements of substantial throughput and high-precision sieving. With a top-grade operational structure, this circular vibration sieve replicates manual sieving processes with exceptional efficiency.
2.Features:
- The basic rotary motion simulates manual sieving. The eccentricity is adjustable from 25 to 40 mm, and the low-speed V-belt drive offers adjustable speed from 120 to 360 rpm.
- Delivers up to 5 times higher output per unit area than conventional vibrating screens.
- Supports accurate six-grade screening.
- Screening efficiency reaches ≥95%.
- Equipped with silicone balls, rubber balls, ultrasonic device, and rotary brush for effective mesh cleaning.
- Prevents mesh clogging, features fully enclosed dust-proof design, and ensures safe operation.
- Acceleration is 4.5 times lower than that of average vibrating screens.
- Extends the service life of wearable parts.
- Low noise level below 75 dB.
- Optimized gravity balance design results in low dynamic load on the foundation.
3.Product Parameters:
Senyou hot sell tumbler screen vibrating sieve for spices powder
| Rotary Model | Diameter of screen surface(mm) |
Screening area(m2) |
Bevel angle of screen surface(°) |
Layer(s) | Power (kw) |
| SYYY-1000 | 1000 | 0.66 | 0-10 | 1-5 | 1.5 |
| SYYY-1200 | 1200 | 0.98 | 0-10 | 1-5 | 2.2 |
| SYYY-1600 | 1600 | 1.81 | 0-10 | 1-5 | 3.0 |
| SYYY-2000 | 2000 | 2.80 | 0-10 | 1-5 | 4.0 |
| SYYY-2600 | 2600 | 5.31 | 0-10 | 1-5 | 5.5 |
4.Working Principle:
When the motor starts operating, it drives the impeller which activates the vibrating body, generating strong vibration force. This force is then transferred to the screen to complete sieving, filtering and impurity removal efficiently.
4.Package&Shipping:
Senyou hot sell tumbler screen vibrating sieve for spices powder:Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable the production period is about 15-20 working days after received your payment.
