1.Introduction
The magnetic iron separator for dry powder leverages permanent magnetic materials to generate magnetic fields, delivering the dual advantages of low energy consumption and high magnetic field intensity. Designed primarily for separating trace iron impurities embedded in powder and fine-grained materials, this equipment allows users to independently program the iron removal cycle per their actual needs, achieving fully automated iron removal and uninterrupted operation. With stable overall running performance, it is easy to operate and maintenance-free in daily use. What’s more, its simplified structure brings low failure rate, high reliability and longer service life, effectively cutting down users’ real utilization costs for better cost-effectiveness.
2.Performance Features
(1).Equipped with premium N45+ high-performance magnetic cores for ultra-long service life.
(2).Customizable iron discharge cycles as per customer needs, auto-expels iron impurities to enable non-stop continuous operation.
(3).Stable overall performance, user-friendly operation and hassle-free maintenance.
(4).Compact structure with low failure rate, high reliability and extended service life, cutting down your operational costs effectively.
(5).Tailor-made solutions available to meet specific customer demands.
3.Preparation before startup
1).Start air supply,and air pressure reach 0.6MPa.
2).Open power supply,check the power supply is consistent with the machine`s,and ensure reliable grounding.
3).According to your material to adjust the iron removal time.(Time Relay)
Turn on
Click start button 1 second ,The Time Relay starts timing time,then the machine starts removing iron.
Stop
Click Start button 1 second ,the machine stops running.
4.Product parameter

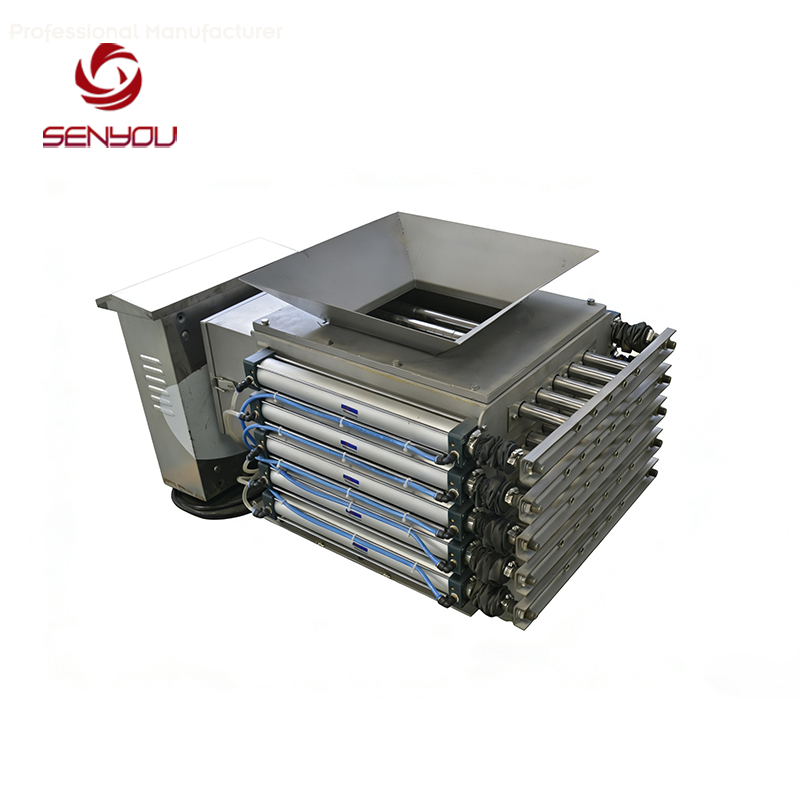

Senyou high gradient magnetic iron separator for dry powder
| Model | Dimensions | Magnetic source | Intensity of magnetic field | Power supply | Operation mode | Air supply pressure |
| SYF-5 | 1860×550×720mm | High performance(NdFeB) | Φ25×600（27pcs）＞10000GS | 220V | Programming control | ＞0.4 |
5.Package&Shipping:
Senyou high gradient magnetic iron separator for dry powder: Export fumigation-free wooden case.
Waterproof,anti- corrosion,difficult to burn,sturdy and durable.
Delivery Detail:Generally,it will take 15 to 25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
