1.Product introduction
The industrial magnetic de-ironing separator is ideal for industries including ceramics, mineral processing, chemical engineering and food processing. It can efficiently remove strong magnetic iron impurities, as well as certain iron oxides and titanium oxides from various pastes. A key advantage is that the magnetic parts do not directly touch the processed materials, which prevents heat accumulation and greatly reduces oxidation risks. In addition, the machine features a simple structure, low failure rate, high stability and long service life. A specially designed cleaning system is also equipped to ensure full cleaning of the working medium in each operation cycle.
2.Features
(1).Equipped with a high-gradient magnetic field and N50+ high-performance magnetic materials, it features a slow demagnetization rate. High-quality parts are used to greatly extend the service life of the equipment.
(2).With strong iron removal performance, it can effectively remove iron impurities in slurry and significantly improve the quality of finished products.
(3).The magnetic parts adopt a non-contact design with raw slurry, ensuring zero contamination. The efficient cleaning system ensures thorough processing and enhances iron adsorption efficiency.
(4).Fully automatic control realizes automatic flushing and iron removal, supporting stable and continuous production.
(5).Low energy consumption, high working efficiency and low failure rate help users greatly reduce production and operation costs.
3.Working principle
Multi-group magnetic blocks create a high-gradient, high-intensity magnetic field. When raw materials enter the cavity, the magnetically conductive medium inside adsorbs and captures iron impurities, which are then removed by cleaning to finish the iron removal process.
During operation, raw materials enter the cavity through the feed inlet, pass through the medium, and are discharged slowly from the outlet. In intermittent mode, materials in the cavity first return to the return tank via the return port (with all other valves closed). Then compressed air pushes the magnetic blocks out of the cavity along the guide rail.
For cleaning, tap water is supplied through the water inlet to wash iron impurities off the medium (the medium is non-magnetic at this stage), and the washed impurities are discharged through the iron outlet. The whole process is fully automatic and runs cyclically based on a preset program.
For multi-cavity equipment, each cavity operates and cleans alternately without interference, ensuring stable continuous feeding and consistent iron removal performance.
4.Technical parameter
Senyou high gradient industrial magnetic de-ironing separator in hot sale
| Model | Rated Voltage | Rated Power | Intensity of Magnetic Field |
Capacity | Dimensions | Weight |

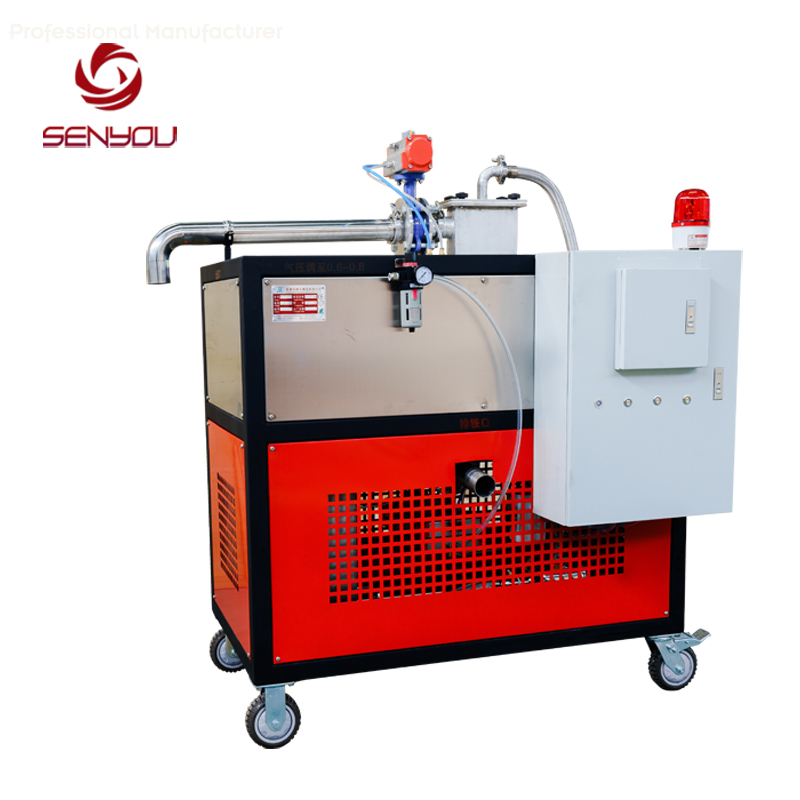

| MQY-1 | 220V | 0.55KW | 18000-20000 | 1.5-2T/H | 1600×950×1700 mm | 650KG |
| MQY-2 | 220V | 0.55KW | 18000-20000 | 2.5-3T/H | 2300×1500×1900mm | 950KG |
5.Packaging & Shipping
Packaging Details:Export wooden case;Waterproof,anti- corrosion,difficult to burn,sturdy and durable.
Delivery Detail:Generally,it will take 15 to 25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
