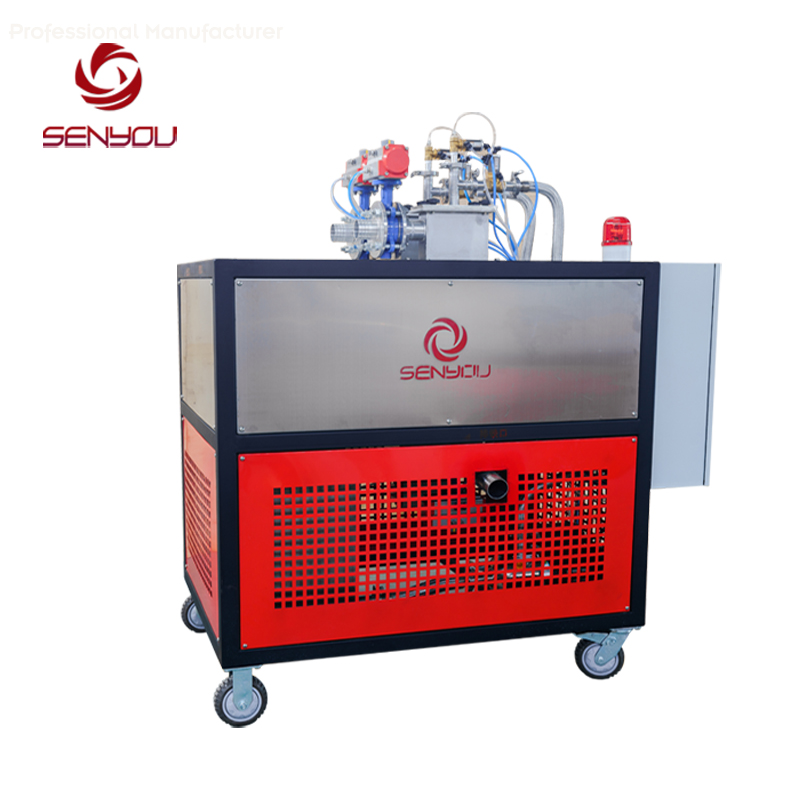

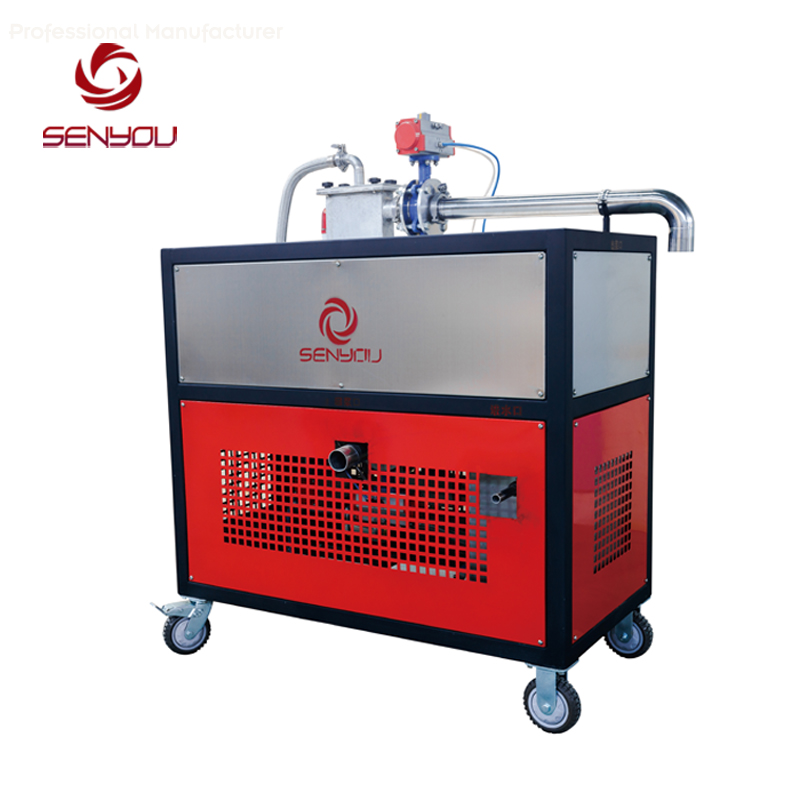

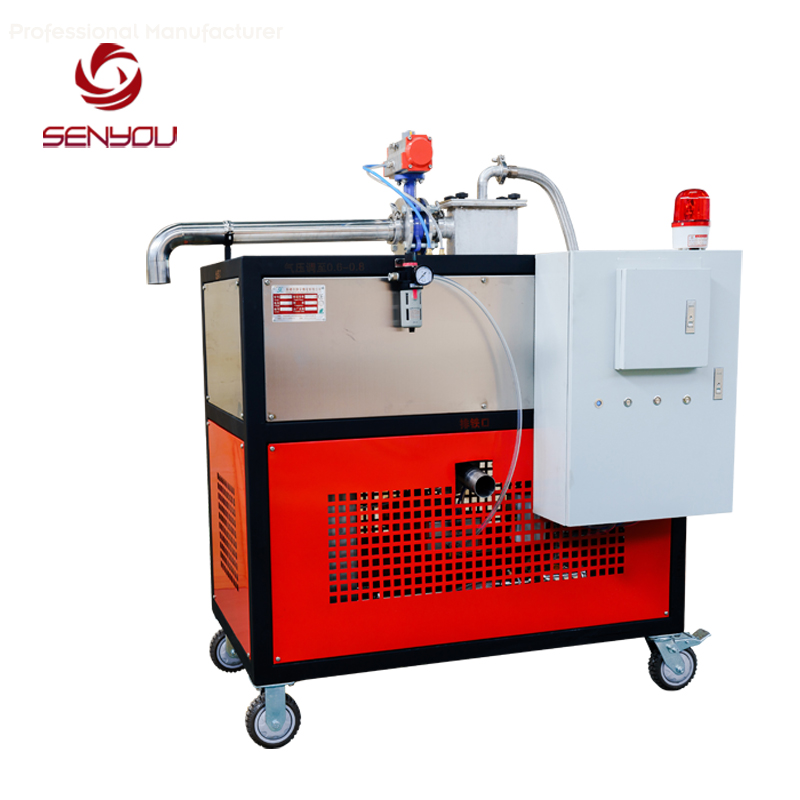

1.Product introduction
The iron removal device for ceramic glaze is suitable for industries such as ceramics, mineral processing, chemical engineering, and food processing for removing strong magnetic iron impurities and some iron oxides and titanium oxides from various paste-like materials. The magnetic material does not come into contact with the materials, does not heat up, is not prone to oxidation, has a simple structure, low failure rate, high reliability, and long service life. A cleaning system has been developed and designed to ensure thorough cleaning of the working medium each time.
2.Features
- High gradient magnetic field,high performance magnetic material above N50,low demagnetization rate.High quality spare parts with long service life.
- Strong iron removal ability,effectively remove iron impurities in the slurry and improve the quality of your product.
- Magnetic materials have not directly contacted with raw material,so does not pollute the slurry.Powerful cleaning makes the medium more thorough and can absorb more iron.
- Fully automatic controlling,automatic flushing and discharge of iron impurities,continuous work is available.
- Long energy consumption,high efficiency and low failure rate,greatly reducing production and use costs.
3.Working principle
Multi-group magnet blocks generate the high gradient and high-intensity magnetic filed.When raw material flows into the cavity,the medium in cavity has magnetic conduction to absorb iron impurity on it,then cleaning it to achieve the purpose of iron removing. When the machine is working, the raw material flow into cavity from feed inlet,through the medium, then slowly discharging out from its outlet.Under the intermittent operation mode,firstly the material of cavity flows from return port back to return tank(at this moment other valves are all closed ),then use air pressure through its lead rail to push the magnet out of cavity.When need cleaning,the running water flow in from water inlet to flush the iron impurity on the medium (at this moment the medium is non-magnetic),then the iron impurity discharge out from iron discharging port. The whole process without manual operation,repeat operation according to the program. If the machine has multi-cavity, each cavity alternate the working state and the cleaning state,they do not affect each other,continuous feeding material,no effect on iron removal.
4.Technical parameter
| Model | Rated Voltage | Rated Power | Intensity of Magnetic Field |
Capacity | Dimensions | Weight |
| MQY-1 | 220V | 0.55KW | 18000-20000 | 1.5-2T/H | 1600×950×1700 mm | 650KG |
| MQY-2 | 220V | 0.55KW | 18000-20000 | 2.5-3T/H | 2300×1500×1900mm | 950KG |
5.Packaging & Shipping
Packaging Details:Export wooden case;Waterproof,anti- corrosion,difficult to burn,sturdy and durable.
Delivery Detail:Generally,it will take 15 to 25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6.Our service
Pre-Sales Service:Free consultancy and design advices as requested,the most suitable solution based on demands.
After-Sales Service: Senyou provide 12 months guarantee, and free service for first time commissioning and training up customers`engineer in domestic.
Emergency Services: if you are located within 1000 kilometers in domestic,Senyou under take to arrive at the spot in 48 hours after receiving reports;if you are not,72 hours services would be served.
Spare Parts Supply: In order to offer the timely services,Senyou has set up a number of warehouses and services offices.We will keep enlarging offices and keep spare parts available in stock for soonest supply to customers.
24-hour Online Services :Contact us online if you have any questions.
