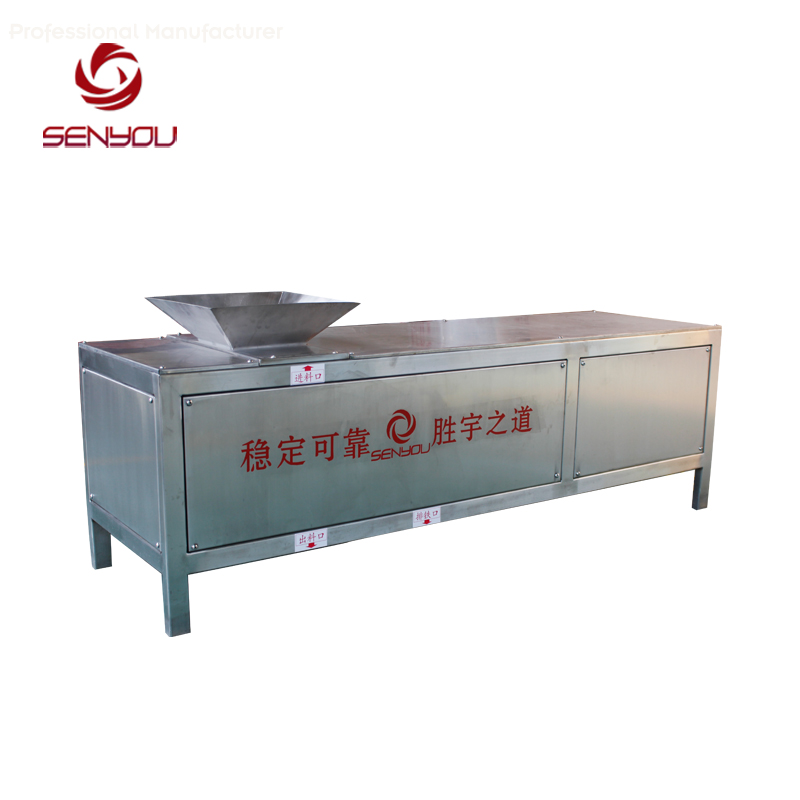

Senyou good design iron removed machine for powder

1.Introduction

The iron removed machine for powder adopts permanent magnetic materials to produce magnetic fields, boasting the dual advantages of low energy consumption and high magnetic field intensity. It is primarily designed for separating trace iron impurities embedded in powder and fine-grained materials. This equipment allows users to independently program the iron removal cycle based on their practical requirements, enabling fully automatic iron removal and non-stop operation. With stable overall operational performance, the machine is easy to operate and hassle-free to maintain. Additionally, its simplified structural design contributes to a low failure rate, high reliability and an extended service life, which can effectively cut down users’ actual costs of utilization.

2.Performance Features

1. Utilizing high-performance magnetic core components of N45 and above specifications, the magnetic cores have long-lasting durability characteristics.
2. The iron removal cycle can be flexibly set according to the actual working conditions of the customer, automatically completing the removal of iron impurities, ensuring the continuous and uninterrupted operation of the equipment.
3. The overall performance of the equipment is stable and reliable, the operation process is simple and easy to understand, and the daily maintenance workload is small.
4. The overall structure design of the machine is simple, the failure rate is low, the operational reliability is high, the service life is long, and it can effectively reduce the comprehensive usage costs for users.
5. Products can be customized according to the personalized needs of customers.

3.Preparation before startup

1).Start air supply,and air pressure reach 0.6MPa.

2).Open power supply,check the power supply is consistent with the machine`s,and ensure reliable grounding.

3).According to your material to adjust the iron removal time.(Time Relay)

Turn on

Click start button 1 second ,The Time Relay starts timing time,then the machine starts removing iron.

Stop

Click Start button 1 second ,the machine stops running.

4.Product parameter

Senyou good design iron removed machine for powder

Model	Dimensions	Magnetic source	Intensity of magnetic field	Power supply	Operation mode	Air supply pressure
SYF-5	1860×550×720mm	High performance(NdFeB)	Φ25×600（27pcs）＞10000GS	220V	Programming control	＞0.4

5.Package&Shipping:

Senyou good design iron removed machine for powder : Export fumigation-free wooden case.

Waterproof,anti- corrosion,difficult to burn,sturdy and durable.

Delivery Detail:Generally,it will take 15 to 25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
