1.Product Description

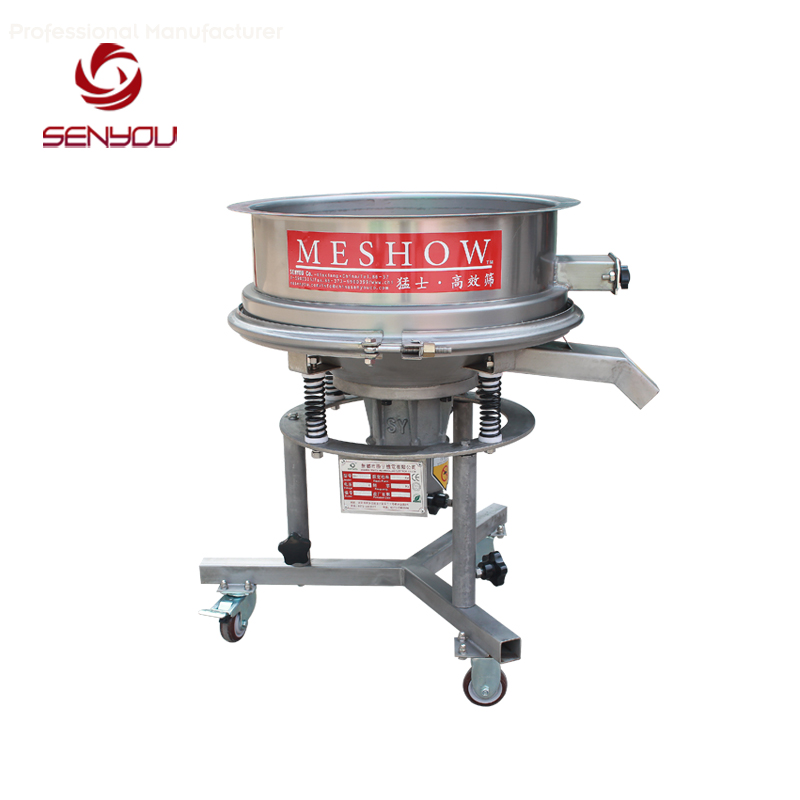

Senyou glaze vibrating sieve for ceramic slurry is our self-developed products with features of high efficiency,small amplitude,high frequency and low noise.Compared with other vibration screens,this kind of vibration screen adapts high frequency device which destroy the tension of slurry,make the high vibration of small size grain on the screen,accelerate the separation of big density material,enlarge the contacts between small size material and sieve,this create a good condition to separate the small grain and big density material.Each machine is adapted a movable rack that makes machine moved freely And the height could be adjusted.It has long use time and simple installation and Operation.
2.Specifications：
| No. | Model | MSG-600 | MSG-800 | MSG-1000 | MSG-1200 |
| 1 | Normal Power | 380V/50HZ | |||
| 2 | Motor Power | 0.55KW | 0.55KW | 0.75KW | 1.1KW |
| 3 | Vibration Mode | Three Dimensional Vibration | |||
| 4 | RPM | 2900r/min | |||
| 5 | Largest Vibration Force | 5000N | 8000N | 10000N | 15000N |
| 6 | Amplitude | 2-4mm | |||
| 7 | Effective Screen Area | 0.221m² | 0.453m² | 0.785m² | 1.002m² |
| 8 | Decibels | ≦75db | |||
| 9 | Dimensions | Φ600×860mm | Φ800×860mm | Φ970×890mm |
Φ1170×890mm |
| 10 | Body Material | SUS304 Stainless Steel | |||
| 11 | Motor Material | Cast Aluminum | |||
| 12 | Surface Treatment | The Base Pickling,Passivation,Plastic-sprayed. | |||
3.Application
Senyou glaze vibrating sieve for ceramic slurry is our self-developed products with featuresof high efficiency,small amplitude and low noise. Applicable to the industries includingceramics glazes,mining,coating,food,chemical etc for liquid filtering and grading.With the stable quality,Senyou products have got highly recognized among customers all over the world. Especially for the ceramic glaze and kaolin clay,its effect is more significant.
4.Package&Shipping:
Senyou glaze vibrating sieve for ceramic slurry : Export fumigation-free wooden case.
