1.Product Introduction

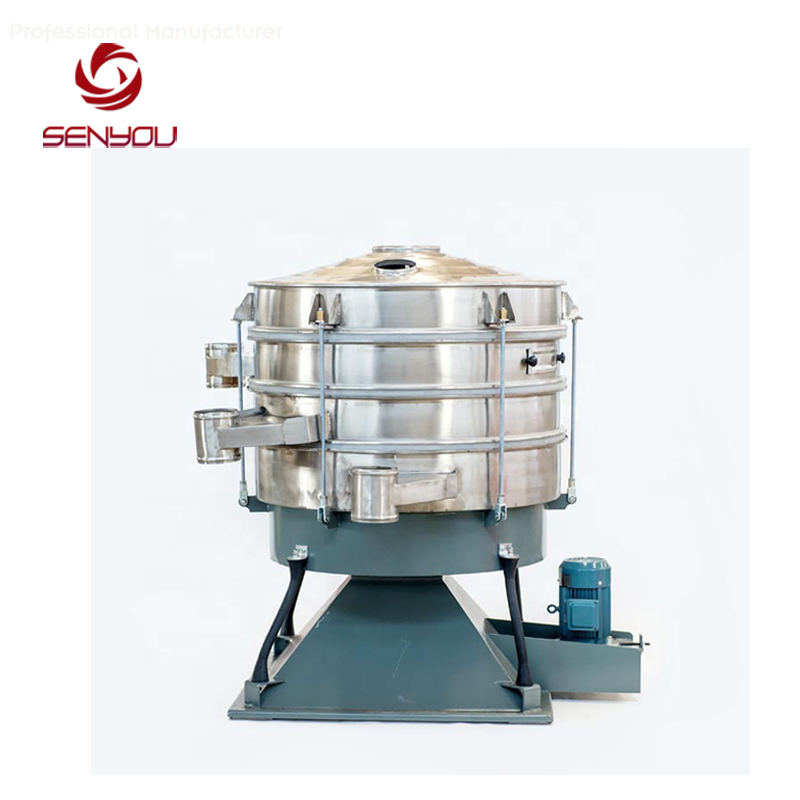

As a high-frequency screening apparatus,Senyou flexible round swing vibrating screen for starch is engineered to satisfy the requirements of substantial throughput and high-precision sieving. Leveraging a top-tier operational mechanism, this circular vibration sieve mimics manual sieving processes with remarkable efficiency.
2.Features:
(1).High-efficiency performance paired with an elegant, robust design – ideal for sieving any powder and irregularly shaped particles with ease.
(2).Maximizes productivity with an output per unit area that’s up to 5 times greater than ordinary models.
(3).Enables accurate 6-layer separation, reaching a high screening efficiency of 90%–99%.
(4).With 4–5 times lower acceleration than regular vibrating screens, it prolongs screen part lifespan and reduces the need for frequent maintenance.
(5).Ultra-quiet operation at under 75dB, plus optimized gravity balance that lowers dynamic load on the foundation.
3.Product Parameters:
Senyou flexible round swing vibrating screen for starch
| Rotary Model | Diameter of screen surface(mm) |
Screening area(m2) |
Bevel angle of screen surface(°) |
Layer(s) | Power (kw) |
| SYYY-1000 | 1000 | 0.66 | 0-10 | 1-5 | 1.5 |
| SYYY-1200 | 1200 | 0.98 | 0-10 | 1-5 | 2.2 |
| SYYY-1600 | 1600 | 1.81 | 0-10 | 1-5 | 3.0 |
| SYYY-2000 | 2000 | 2.80 | 0-10 | 1-5 | 4.0 |
| SYYY-2600 | 2600 | 5.31 | 0-10 | 1-5 | 5.5 |
4.Working Principle:
(1).Operating with a basic rotary motion that perfectly mimics manual sieving actions, this equipment offers adjustable swing amplitude (25–40 mm) and swing frequency (120–360 times per minute) to fit diverse screening needs.
(2).You can easily adjust how long materials stay in the screening machine by modifying the machine’s longitudinal orientation and cutting angle.
(3).Materials move in a horizontal and throwing-rolling pattern across the mesh surface, spreading evenly from center to edge. This circular motion extends axially, ensuring fine particles go through a complete, thorough screening process.
(4).As particles move, their horizontal and vertical acceleration increases. Small particles pass through the sieve holes smoothly for separation, and larger particles are directed to the outlet. An adjustable guiding device controls the outlet flow rate and also acts as a secondary way to manage material retention time.
(5).This efficient screening process is repeated on each sieve layer for consistent, high-quality results.
4.Package&Shipping:
Senyou flexible round swing vibrating screen for starch:Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable the production period is about 15-20 working days after received your payment.
