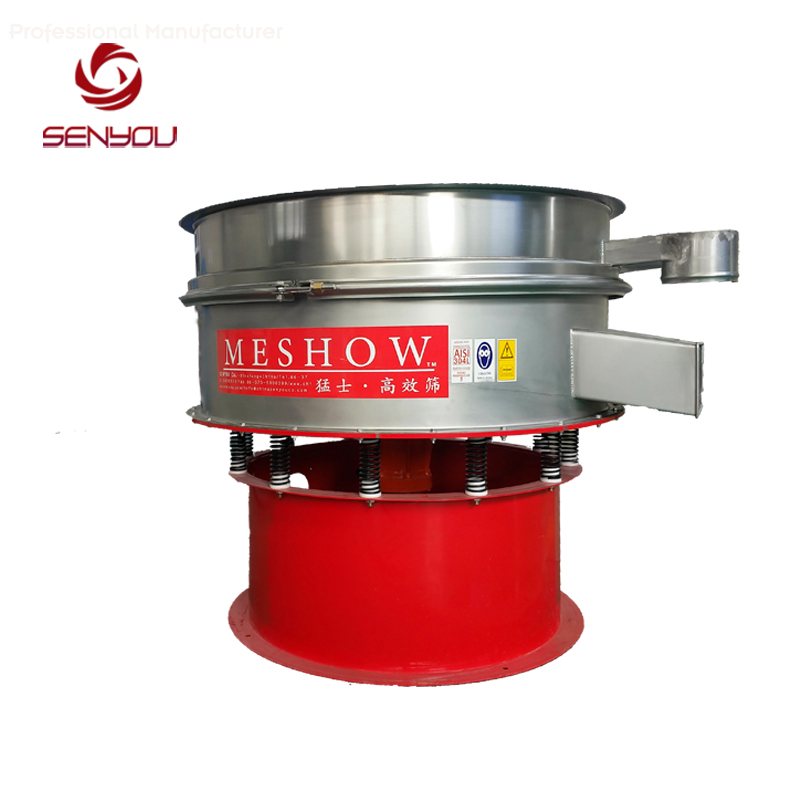

Senyou durable in use dry powder vibrating separator

Application:

Senyou durable in use dry powder vibrating separator finds broad application in removing oversized particles from dry powder substances, a process that significantly improves the proportion of high-quality products. Its core application lies in the screening and impurity removal of ceramic dry powder, which helps to preserve the homogeneity of the powder. Thanks to its stable and reliable quality, Senyou products are highly praised by customers around the world.

1.Product Description

Senyou durable in use dry powder vibrating separator is a specialized equipment designed for the screening of dry materials and catering to users with high production demands. Its core advantage lies in the unique design of the vertical installation of the screen mesh, which fundamentally avoids the screen mesh from bearing additional loads and significantly extends the service life of the equipment; the screening fineness range of the equipment is wide, meeting the classification requirements of various dry powder materials; during operation, it has low noise and low energy consumption, enabling 24-hour continuous and stable operation; at the same time, the equipment structure is user-friendly, and the subsequent maintenance and repair operations are simple. Currently, the dry powder vibrating separator has been widely applied in the dry powder industry on a large scale, and with its excellent performance, it has received unanimous praise from customers.

2.Features:

1). High efficiency, exquisite and durable design, all kinds of powder, granular dry materials can be screened.
2). Easy to change the screen, simple to operate and easy to clean.
3). The mesh is not blocked, the powder does not fly, and it can be sieved to 400 mesh.
4). Impurities and coarse materials are automatically discharged, and can be operated continuously. This improves the utilization rate of the sieve surface, improves the screening efficiency, and reduces the powder content in the finished material.

3.Product parameter

Senyou durable in use dry powder vibrating separator

Model MSGF-1000 MSGF-1200
Vibration Mode  Three dimensional vibration
Motor Power 0.75KW 1.1KW
Largest Vibration Force 10000N 15000N
Amplitude 2-4mm
Normal Power 380V/50Hz;415V/50Hz
Screen Area 0.785㎡ 1.002㎡
 Decibels ≤75db
Dimension 1230mm*1230mm*970mm 1430mm*1430mm*1030mm

4.Working Principle

When the machine starts to run, the operation of the vibration motor produces an exciting force, under the action of the exciting force, the body does composite movement, and finally the material on the screen does jumping movement with the body.

5.Packaging & Shipping

Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable.The production period is about 5~7 working days after received your payment.



Weight 230 kg
Dimensions 1260 × 1250 × 1260 mm
Brand

SENYOU
