1.Product introduction

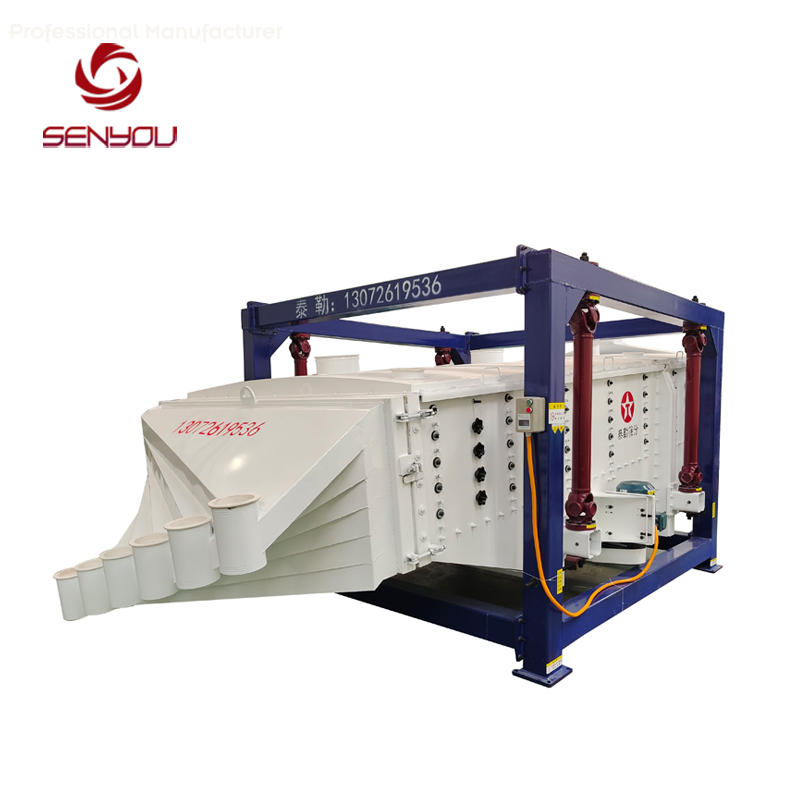

Senyou best selling square gyratory screen vibrating sieve replicates the operational motions of manual screening with high efficiency. Based on the machine’s running path, this square gyratory vibrating sifter is alternatively known as a reciprocating sieve. The vibratory power generated by its drive system is an inertial force that changes in a regular pattern along a fixed axial direction. Fundamentally, this force comes from the reciprocating inertial effect created by an eccentric wheel rotating around a fixed axis. The sieve surface of this device is usually mounted either horizontally or at a small angle of inclination.
2.Features:
- High production capacity: Its unique multi-layer grading design allows one machine to be split into two groups or run in multi-unit mode, doubling output efficiency.
- Fully enclosed structure eliminates dust leakage; combined with low vibration and noise, the machine meets all environmental requirements.
- Flexible screening performance, with acceleration4–5 times lower than regular vibrating screens, extends service life and reduces maintenance costs.
- Easy screen mesh replacement: simple to operate, stable and reliable in use.
- Large-scale electrostatic spray molding ensures the equipment is attractive in appearance, as well as wear-resistant and rust-proof.
- With multiple national patents for protection, this product leads the industry in technology.
3.Product Parameters
Senyou best selling square gyratory screen vibrating sieve
| Model | Screen mesh size | Screening area | Screen angle | Layers | Power | Number of rotations | Screen box stroke |
| SYFY-1536 | 1.5m*3.6m | 5.25㎡ | 5-8 | 1-10 | 5.5KW | 180-260 | 25-60mm |
| SYFY-2040 | 2.0m*4.0m | 8㎡ | 5-8 | 1-10 | 7.5KW | 180-260 | 25-60mm |
4.Working Principle
The distinctive gyratory motion enables the material to undergo a sequence of movements as it travels across the screen surface. The process initiates with a horizontal circular motion at the feed inlet, which gradually transitions into an elliptical trajectory along the machine’s length, and ultimately becomes a near-linear motion at the discharge outlet. Notably, this motion lacks any vertical component, ensuring that the material maintains continuous contact with the screen surface at all times.
5.Package&Shipping
Export wooden case.Waterproof,anti-corrosion,difficult to burn,sturdy and durable the production period is about 7-10 working days after received your payment.
