1.Introduction

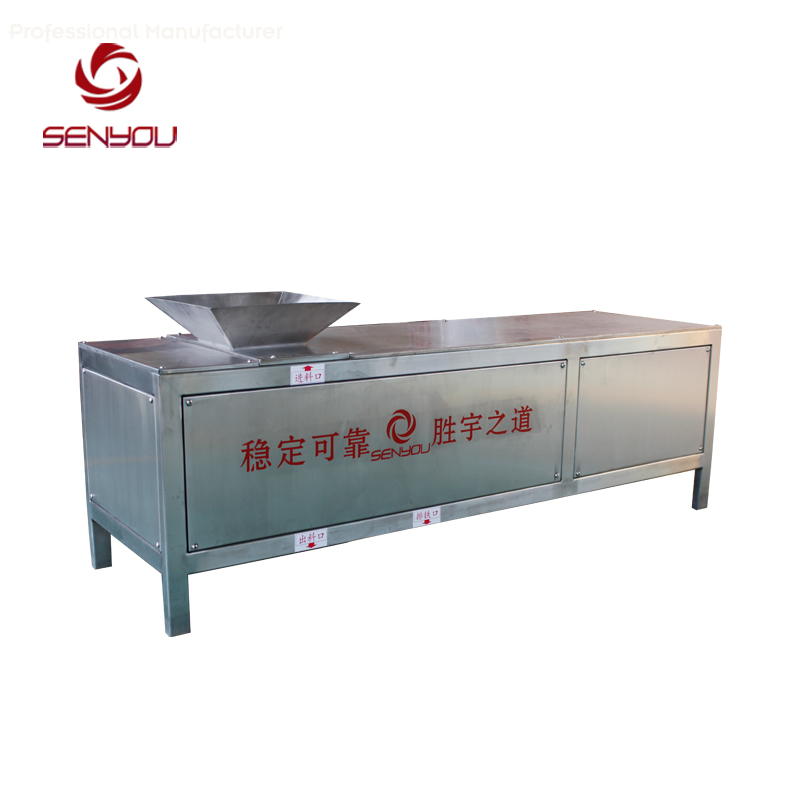

Senyou automatic dry powder iron remover is a kind of full- automatic & permanent magnetic separator,it is using high performance rare permanent material as magnetism source,has stronger magnetic attractions,remove ferrous materials thoroughly. Senyou automatic dry powder iron remover has the advantages of energy saving,good automatic iron removing effect,large production capacity,and the working time is adjustable.It is easy to operate and has low failure rate. It has high quality ,large flow rate,and long use life,which help reduce the production costs. Applicable to the industries including Ceramics,Mining metallurgy,Chemical,Electronics,Food etc for removing various powder,strong magnet iron impurities and some ferric oxide.
2.Performance Features
1).Ideal for removing various strong magnetic iron impurities,some ferric oxide in dry powder materials.
2).No energy consumption,automatically iron removing,easy to operation.
3).Full-automatic controlling,no manual work,easy to maintain and clean.
4).Precise designed ,large production capacity,the magnetic field is more powerful and effective.
5).Iron removal and cleaning cycle are adjustable.
3.Preparation before startup
1).Start air supply,and air pressure reach 0.6MPa.
2).Open power supply,check the power supply is consistent with the machine`s,and ensure reliable grounding.
3.According to your material to adjust the iron removal time.(Time Relay)
Turn on
Click start button 1 second ,The Time Relay starts timing time,then the machine
starts removing iron.
Stop
Click Start button 1 second ,the machine stops running.
4.Specificatiom
| Model | Dimensions | Magnetic source | Intensity of magnetic field | Power supply | Operation mode | Air supply pressure |
| SYF-5 | 1850×590×720m | High performance(NdFeB) | Φ25×600（27pcs）＞10000GS | 220V | Programming control | ＞0.4 |
5.Package&Shipping:
Senyou automatic dry powder iron remover : Export fumigation-free wooden case.
6.Our service
Pre-Sales Service: Free consultancy and design advices as requested,the most suitable solution based on demands.
After-Sales Service: Senyou provide 12 months guarantee, and free service for first time commissioning and training up customers`engineer in domestic.
Emergency Services: if you are located within 1000 kilometers in domestic,Senyou under take to arrive at the spot in 48 hours after receiving reports;if you are not,72 hours services would be served.
Spare Parts Supply: In order to offer the timely services,Senyou has set up a number of warehouses and services offices.We will keep enlarging offices and keep spare parts available in stock for soonest supply to customers.
24-hour Online Services :Contact us online if you have any questions.
