Product Description

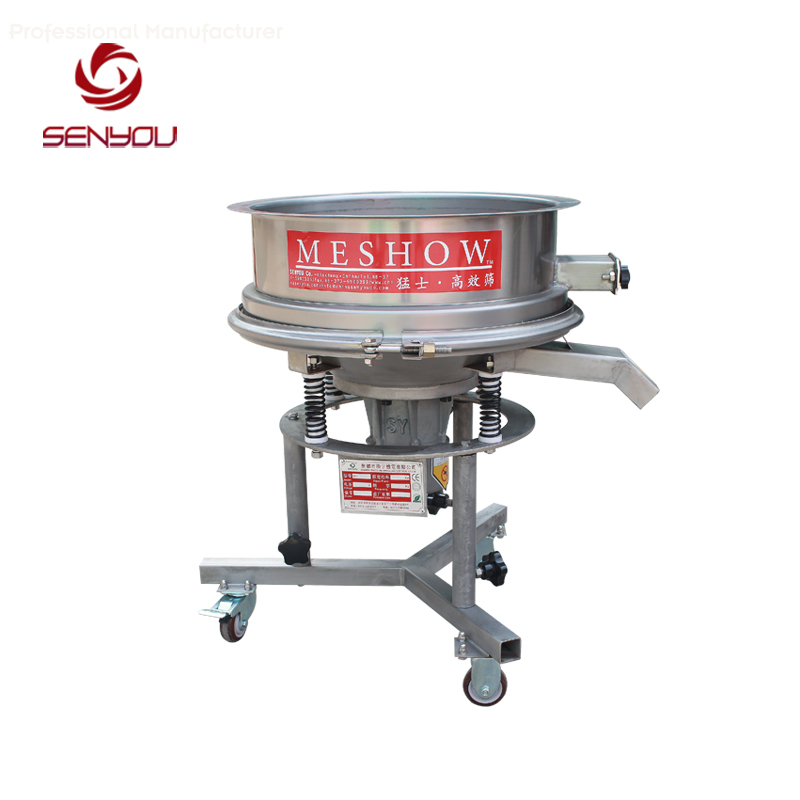

Senyou MSG Series high-frequency glaze vibrating sieve is High frequency glaze vibrating screen is our self-developed products with featuresof high efficiency,small amplitude and low noise.Applicable to the industries includingceramics glazes,mining,coating,food,chemical etc for liquid filtering and grading. With the stable quality,Senyou products have got highly recognized among customers all over the world.
Technical parameter
| No. | Model | MSG-600 | MSG-800 | MSG-1000 | MSG-1200 |
| 1 | Normal Power | 380V/50HZ | |||
| 2 | Motor Power | 0.55KW | 0.55KW | 0.75KW | 1.1KW |
| 3 | Vibration Mode | Three Dimensional Vibration | |||
| 4 | RPM | 2900r/min | |||
| 5 | Largest Vibration Force | 5000N | 8000N | 10000N | 15000N |
| 6 | Amplitude | 2-4mm | |||
| 7 | Effective Screen Area | 0.221m² | 0.453m² | 0.785m² | 1.002m² |
| 8 | Decibels | ≦75db | |||
| 9 | Dimensions | Φ600×860mm | Φ800×860mm | Φ970×890mm |
Φ1170×890mm |
| 10 | Body Material | SUS304 Stainless Steel | |||
| 11 | Motor Material | Cast Aluminum | |||
| 12 | Surface Treatment | The Base Pickling,Passivation,Plastic-sprayed. | |||
Application
Senyou High Frequency Glaze Vibrating Screen is a great “all rounder” it is most typically used in the following industries:
- Ceramic material,glaze,kaolin clay
- Food: sifting liquid materials and removing solids
- Paint
- Recycling & Laundry, removing solids from waste water
- Processing
- Minerals & chemical
- Wet or dry … heavy or light … coarse or fine … hot or cold.
Especially for the ceramic glaze and kaolin clay,its effect is more significant.
