Product Description

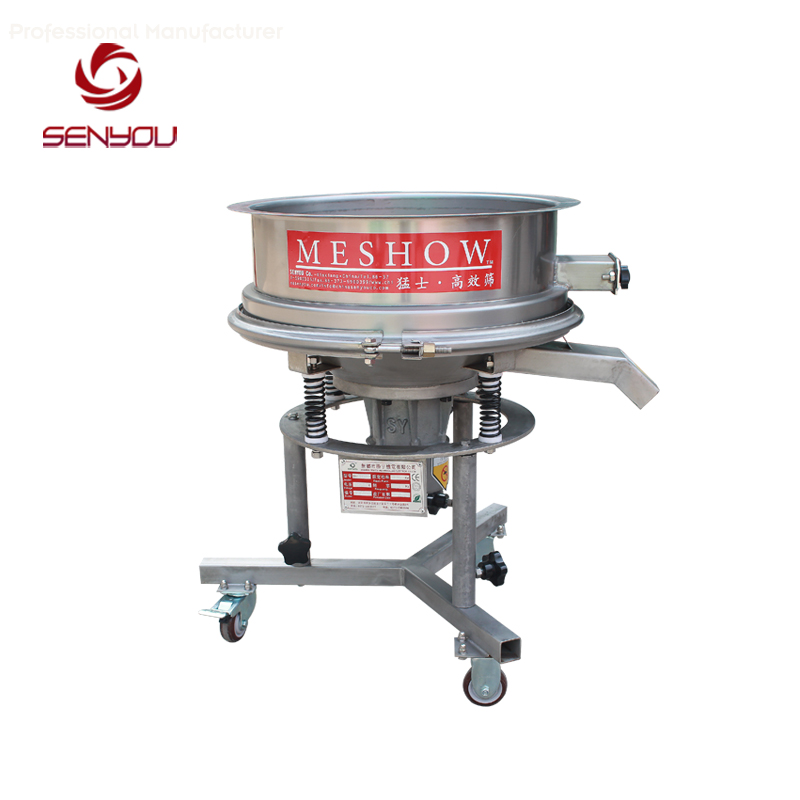

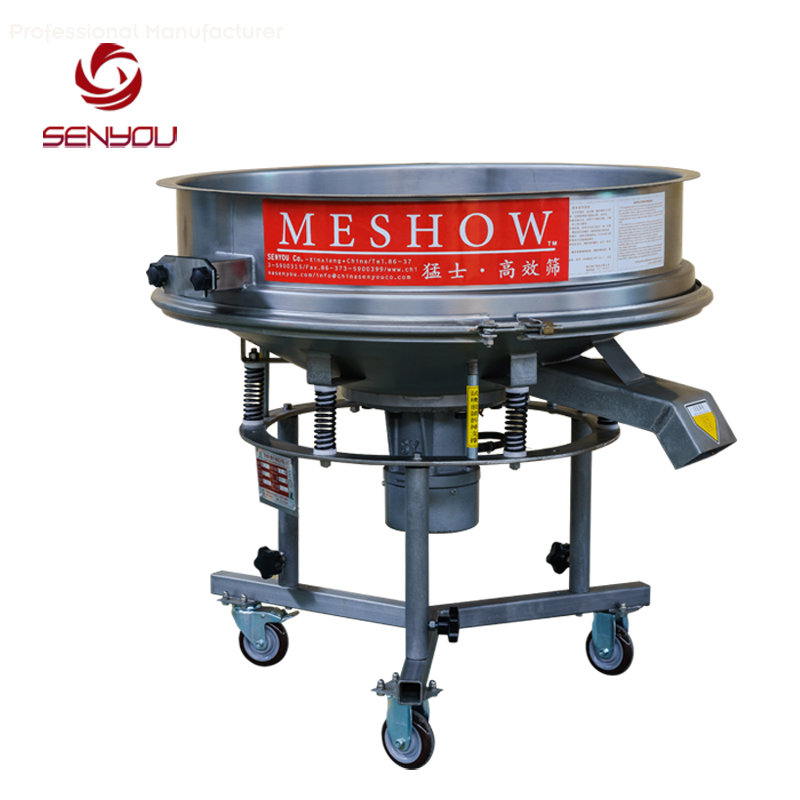

1.Senyou MSG Series Ceramics Glaze Vibrating Sifter is our self-developed products with features of high efficiency,small amplitude,high frequency and low noise.Compared with other vibration screens,this kind of vibration screen adapts high frequency device which destroy the tension of slurry,make the high vibration Of small size grain on the screen,accelerate the separation of big density material,enlarge the contacts between small size material and sieve,this create a good condition to separate the small grain and big density material.
Technical parameter
| No. | Model | MSG-600 | MSG-800 | MSG-1000 | MSG-1200 |
| 1 | Normal Power | 380V/50HZ | |||
| 2 | Motor Power | 0.55KW | 0.55KW | 0.75KW | 1.1KW |
| 3 | Vibration Mode | Three Dimensional Vibration | |||
| 4 | RPM | 2900r/min | |||
| 5 | Largest Vibration Force | 5000N | 8000N | 10000N | 15000N |
| 6 | Amplitude | 2-4mm | |||
| 7 | Effective Screen Area | 0.221m² | 0.453m² | 0.785m² | 1.002m² |
| 8 | Decibels | ≦75db | |||
| 9 | Dimensions | Φ600×860mm | Φ800×860mm | Φ970×890mm |
Φ1170×890mm |
| 10 | Body Material | SUS304 Stainless Steel | |||
| 11 | Motor Material | Cast Aluminum | |||
| 12 | Surface Treatment | The Base Pickling,Passivation,Plastic-sprayed. | |||
Application
Senyou Ceramic glaze vibrating sieve is a great “all rounder” it is most typically used in the following industries:
- Ceramic material,glaze,kaolin clay
- Food: sifting liquid materials and removing solids
- Paint
- Recycling & Laundry, removing solids from waste water
- Processing
- Minerals & chemical
- Wet or dry … heavy or light … coarse or fine … hot or cold.
Especially for the ceramic glaze and kaolin clay,its effect is more significant.
